GT-2300-1500-W6-R01
Indexable Insert Drill; 0.905″ Dia. × 55.488″ LU × 1.26″ Shank Dia. × 59.189″ OAL ; 25 ; Steel

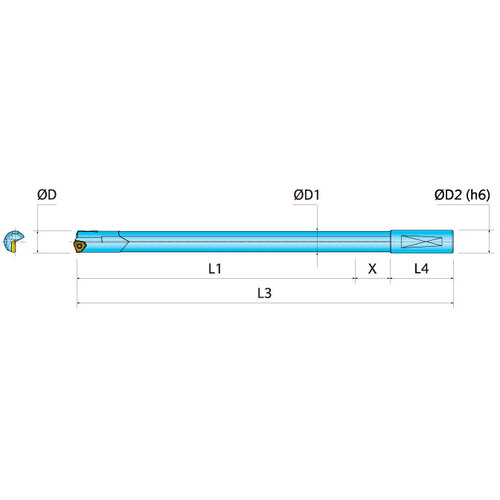

Cutting Diameter (DC) | 0.905″ | Functional Length (LF) | 59.055″ |
Usable Length (LU) | 55.488″ | Overall Length (OAL) | 59.189″ |
Application | | Drill Mill | Drilling | | Point Length (PL) | 0.134″ |
Connection Diameter Machine Side (DCONMS) | 1.26″ | Measurement Type | Inch |
Shank Size (SS) | 1″ | Length Group | 25× |
Tool Type | Indexable Drill | Body Material | Steel |
Shank Length (LS) | 2.362″ | Decimal Equivalent | 0.905″ |
Product Features
Country of Origin | Usa |
Shipping Info
Package Weight
5.952
