VPGR-332 AC3R

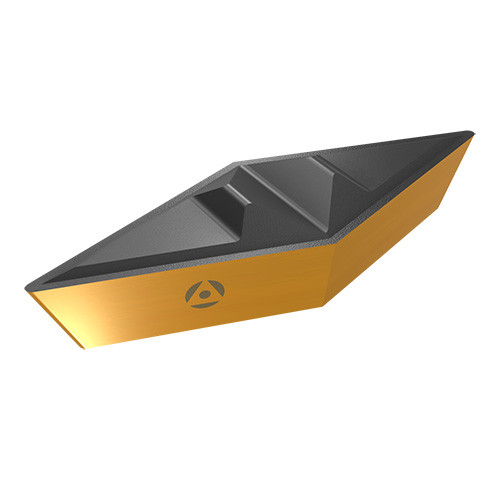

Turning Insert; VPGR-332 INSERT AC3R ; 3/8″ IC ; 0.031″ Corner Radius ; Carbide ; Right Hand ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Grade | AC3R |
| Application | | Int Ext Profiling | | Tool Type | Profiling Insert |
| Insert Style | VPGR | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.031″ | Number of Cutting Edges | 3 |
| Insert Size | 332 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.188″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | ISOI |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Model No | 8866423 |
Product Features
| Family Description | 35° Diamond Profiling IC Inserts for Internal and External applications | ||
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.26
