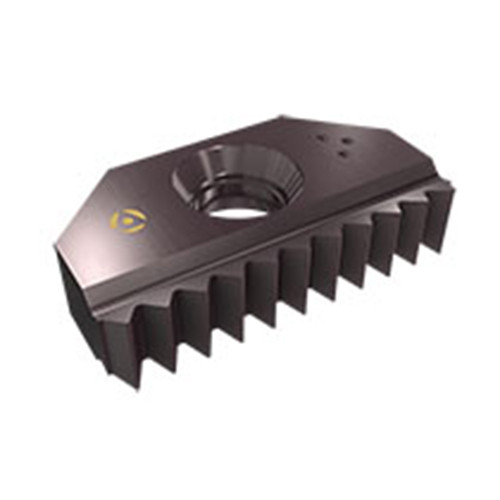

MT TIDC 826 I7UN AC22
Thread Milling Inserts for American (UN, UNC, UNF, UNEF, UNS) Full Profile Threads for General Applications
| Thread Pitch (TP) | 3.629 mm | Grade | AC22 |
| Threads per Inch (TPI) | 7 Threads/" | Shape | 90° Rectangular |
| Insert Length (INSL) | 0.827″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.496″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.189″ | Measurement Type | Inch |
| Application | | Internal Thread Milling | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Thread Milling Inserts for American (UN, UNC, UNF, UNEF, UNS) Full Profile Threads for General Applications | ||
| Country of Origin | Israel |
Shipping Info
Package Weight
0.003
