MT TISC 826 11BSPT AC22

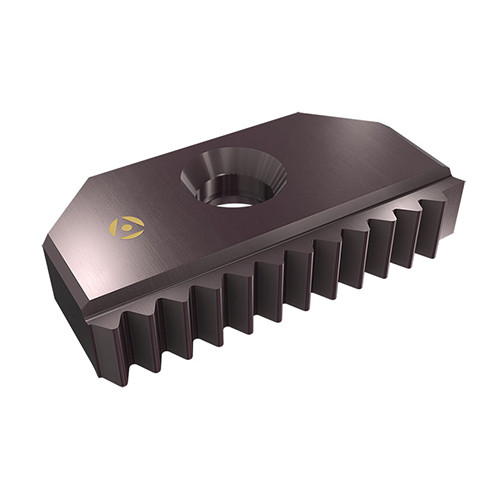

External and Internal Thread Milling Inserts for BSPT Full Profile
| Thread Pitch (TP) | 2.309 mm | Grade | AC22 |
| Threads per Inch (TPI) | 11 Threads/" | Shape | 90° Rectangular |
| Insert Length (INSL) | 0.827″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.496″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.14″ | Measurement Type | Inch |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | BSPT55 |
Product Features
| Family Description | External and Internal Thread Milling Inserts for BSPT Full Profile | Country of Origin | Israel |
