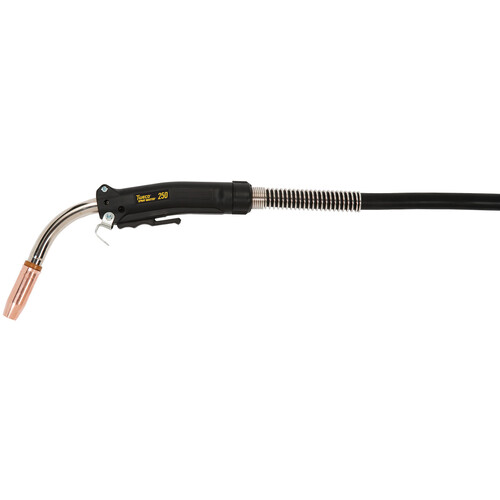

‎Tweco 250 Amp Spray Master .035″ - .045″ Air Cooled MIG Gun - 12' Cable/Tweco 8-pin Rear Connector

‹ ›

‎Tweco 250 Amp Spray Master .035″ - .045″ Air Cooled MIG Gun - 12' Cable/Tweco 8-pin Rear Connector

Item # ES0210231140

UNSPSC: 23271700

Brand: Esab

MFG#: 10231140

Quantity Available

loading...

Type

MIG Gun

Minimum Wire Outside Diameter

0.035″

For Use With

Solid | Flux Cored Gas Shielded | Flux Cored Self-Shielded |Aluminum

Current

250 Amp

Cable Length

12 feet

Wire Size

‎0.035″-0.045″

Maximum Wire Outside Diameter

0.045″

Series

Spray Master

Product Features

Remarks

Thick-walled, three-layer conductor tube for higher electrical conductivity, act as heat sink and durable
Heavy-duty thick-walled contact tip and diffuser increases tip life and decreases downtime with tip changes
Balanced to pivot at the center of the handle for ease of use in different welding positions, reduces operator fatigue
Extended trigger length to keep hand away from the arc to reduce radiated heat
Steel spring strain relief provides support to the Cablehoz coming out the rear of the handle to minimize wire feed issues
Optional mechanical locking trigger - Identified with "LC" Part No. suffix
Front and rear spring strain relief and cable support
Compact, ergonomic handle design
Durable metal jacketed conductor tube
Patented, extended life consumables
Field repairable: Split-half handle case provides access for ease of repair
Field repairable mechanical cable connections for Cablehoz spare trigger leads in Cablehoz
Lower heat in the handle and conductor tube: Heavy wall conductor tube and front Cablehoz connection (crimped) for improved electrical conductivity and lower heat in the front end
Heavy-duty contact tip and diffuser for improved performance in high heat applications
Standard gun configurations options: Standard trigger on/off operation
Optional dual schedule and locking trigger
Wide welding applications: Spray transfer mode and pulse welding straight co2 or mixed gases
Lower inventory carrying costs: Interchangeable front end consumables between Tweco classic no. Series and Tweco spray master series

Country of Origin

Mexico
