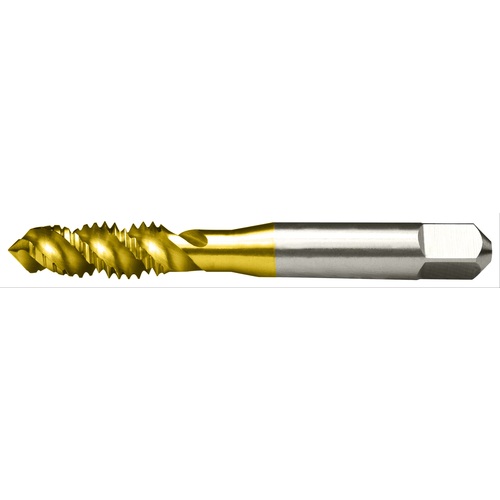

#6-32 UNC 2 Flute H3 HSS High Helix Plug Chamfer General Purpose High-Spiral Tap- TiN
| Thread Diameter Size (TDZ) | #6 | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 32 | Chamfer | Plug |
| Thread Standard | NC | Coating | TiN |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.38″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Style | Plug |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 52 Degrees | Length Group | 2D |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 1093-TN |
| Thread Tolerance Class (TCTR) | H3 | 2B |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.007
